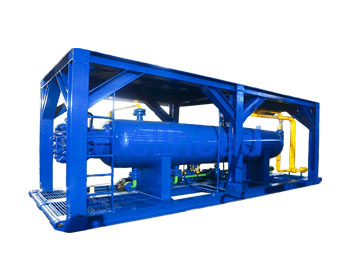

Size

42" ID x 10' - 0" seam/seam

Service

Sour

Design Pressure

1,332 psig @ 120 deg. C (248 deg. F)

Working Temperature

Low: -28.9 deg. C (-20deg. F)

High: 120 deg. C (248 deg. F)

Environmental Temperature

Low: -28.9 deg. C (-20deg. F)

High: 60 deg. C (140 deg. F)

Shell Material

SA-516-70 Carbon Steel

Head Material

SA-516-70 Carbon Steel

Vessel Couplings

SA-105, 6000#

External Specification Colour Specification

Sandblasted to white finish

Inorganic zinc primer (3-4 mils DFT)

Epoxy intermediate coat (4-6 mils DFT)

Acrylic Polyurethane Top Coat (4-6 mils DFT)

Nozzle Specification

SA-105, ANSI 600# RFWN & 150# RFWN Carbon Steel Flanges

Code

Radiograph RT-1 and stress relieve

Estimated weight (dry weight)

14,400 kg

Estimated Dimensions

Length: 20' - 0"

Width: 8' - 0"

Height: 8' - 6"

Capacity

Vessel at half full-Gas

56 mmscfd at 1,440 psig operating pressure

Vessel at half full-Oil

6,969 bpd total liquid with 2.0 minute retention

Vessel at half full-Vessel Internals

Defoaming Plates

Mist Extractor Element

Internal Anti-surge Baffles

Liquid Outlet Vortex Breakers

Metering - Gas

Daniels Senior Orifice Fitting (5.761" bore) c/w Three pen Recorder, 24 hour /7 day adjustable clock and key, 0 - 400" WC, 0 - 250 degF , 1500 psig static

Metering - Oil

One (1) Electronic Totalizer mounted on 1" Turbine Meter body (170 to 1,700 BBL/D)

One (1) Electronic Totalizer mounted on 2" Turbine Meter body (1300 to 13,000 BBL/D)

Metering - Water

One (1) Electronic Totalizer mounted on 1" Turbine Meter body (170 to 1,700 BBL/D)

Instrumentation

Two (2) Fisher Liquid Level Controllers

One (1) Thermometer 0-250F

One (1) Pressure Gauge 0 - 2,000 psig

Two (2) Liquid Level Gauges

Control Valves - Gas

One (1) 3" Fisher Back Pressure Control Valve

Control Valves - Oil

One (1) 2" Fisher Liquid Level Control Valve

Control Valves - Water

One (1) 2" Fisher Liquid Level Control Valve

Control Valves - Safety

One (1) 3" x 4" Pressure Relief Valve set at 1350 Psig

One (1) 2" Rupture Disc

Inlet Connection

3" Fig 602 Hammer Union Thread

Outlet Connection

Oil - 3" Fig 602 Hammer Union Wing

Water - 2" Fig 602 Hammer Union Wing

Gas - 3" Fig 602 Hammer Union Wing

Vent - 4" Fig 602 Hammer Union Wing

Miscellaneous

Shrinkage Tester Manual Ball Type Isolation Valves (AOP)

One (1) Set (29 plates) of 316 Stainless Steel Orifice Plates (0.5 to 4.0" in .125 increments)

Instrument Air Knockout Pot

Crash Frame with Lifting Connections

Special sling for lifting

Standards - Vessel

ASME Section VIII, Div. 1, Latest Revision Addenda

Standards - Piping

ANSI B31.3

Standards - Welding

ANSI / AWS D1.1

Standards - Flanges & Fittings & Gaskets

ASME / ANSI B16.5

Standards - Sour Service

NACE MR.0175
